Faven Chroma Under Canopy Starter Pro Pack XL
Updated 18 Oct 2026

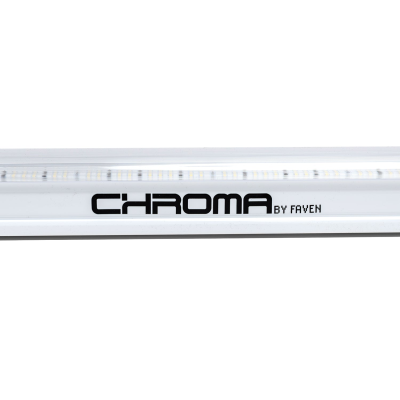

Faven Chroma Under Canopy Starter Pro Pack XL is an under-canopy lighting kit with sixteen 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, power cord, jumper cable, stands. Choice of cord voltage.
Usage & Instructions

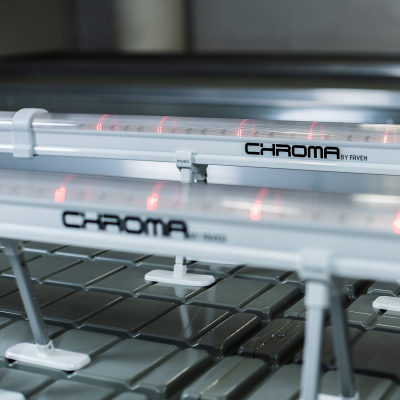

Mount on Faven adjustable stands at 8, 10 or 12 in below the canopy, lengthwise or crosswise to the bench. Daisy-chain fixtures with couplings and jumper cables; max fixtures per run: 9 at 120 V, 17 at 240 V, 20 at 277 V. Seal the last fixture with an end cap to keep IP66.
Description

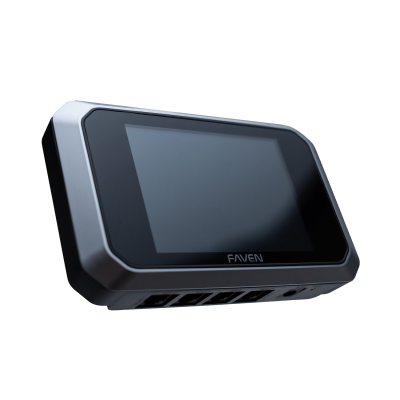

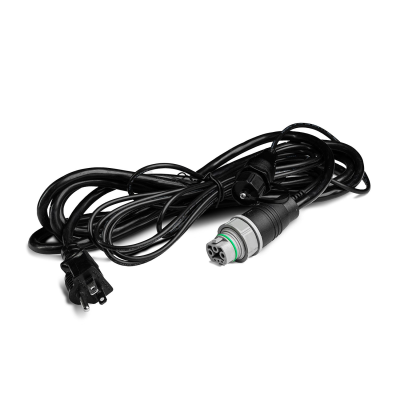

Kit contents per Faven: 16 x Faven Chroma Under Canopy Light, controller, power cord, jumper cable, stands. Total connected load 2160 W at full power. Offered with a 240 V, 277 V power cord. See the Chroma light for fixture specifications.
