Faven Mini Controller
Updated 18 Oct 2026

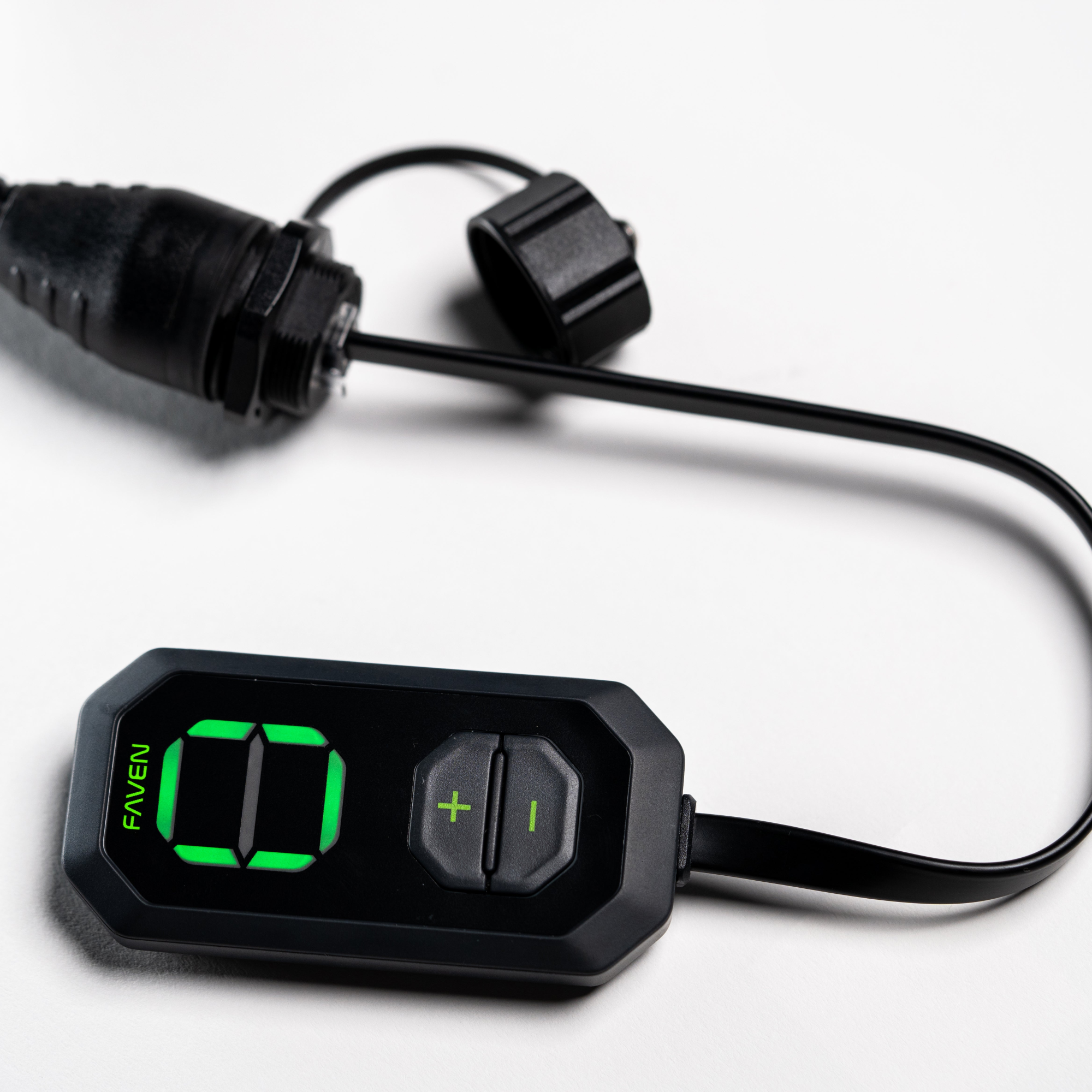

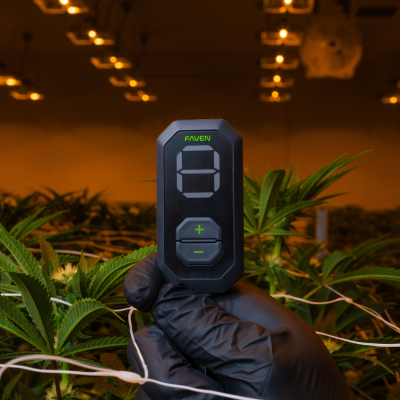

Faven Mini Controller is a compact 0-10V dimmer for Faven R6 and R8 under canopy lights, controlling up to 100 fixtures. It plugs into the RJ port on the power cord and sets intensity in levels 1-9 or full power. Dimming only: no on/off or timer function. Not for Chroma.
Usage & Instructions
Plug the RJ jack into the communication line on the fixture power cord. Use a separate timer or contactor for on/off.
Description
A simple 0-10V intensity controller for growers who do not run a central lighting controller. Buttons +/- step intensity, levels 1-9 select fixed outputs and F sets full power. Controls up to 100 fixtures. It does not switch lights on or off and cannot replace a timer. Compatible with Faven R6 and R8 only; not compatible with Chroma.
