Faven Chroma Under Canopy Starter Pro Pack
Updated 18 Oct 2026
Faven Chroma Under Canopy Starter Pro Pack is an under-canopy lighting kit with eight 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, power cord, jumper cable, stands. Choice of cord voltage.
Usage & Instructions
Mount on Faven adjustable stands at 8, 10 or 12 in below the canopy, lengthwise or crosswise to the bench. Daisy-chain fixtures with couplings and jumper cables; max fixtures per run: 9 at 120 V, 17 at 240 V, 20 at 277 V. Seal the last fixture with an end cap to keep IP66.
Description

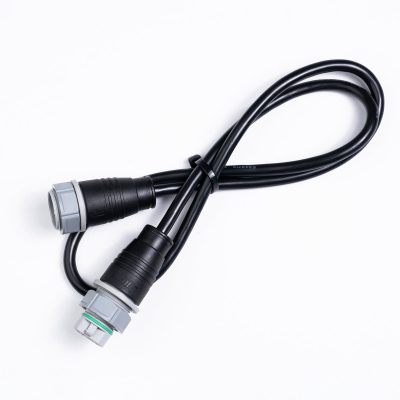

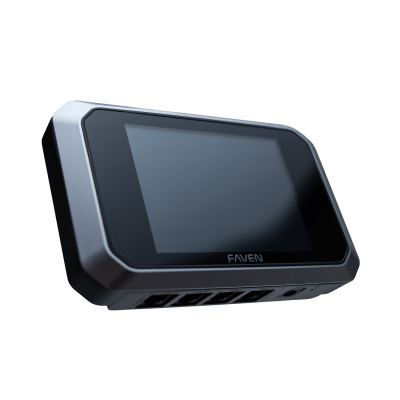

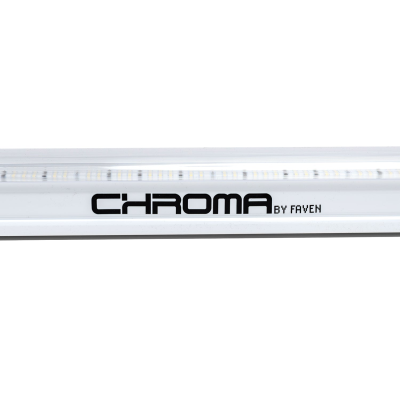

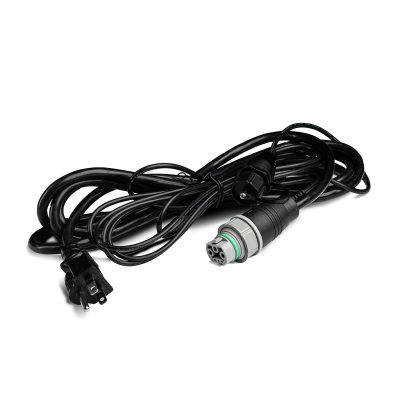

Kit contents per Faven: 8 x Faven Chroma Under Canopy Light, controller, power cord, jumper cable, stands. Total connected load 1080 W at full power. Offered with a 120 V, 240 V, 277 V power cord. See the Chroma light for fixture specifications.
Available variants
Chroma
All products in the Chroma range.
Faven Chroma Power Cord Bundle
Faven Chroma Power Cord Bundle supplies power to Faven Chroma under canopy lights through a 10 ft (3 m) cord with built-in surge protection and a low-voltage dimming wire. Includes an IP66 end cap and a 10 ft single-end communication cable. 277 V version uses a NEMA L7 plug.
Faven Chroma Under Canopy Light
Faven Chroma Under Canopy Light is a 120 W LED bar with an adjustable R4-R9 spectrum and a separate 15 W far-red channel. IP66 sealed, internal driver. Works with Faven CX3, GrowFlux, approved RS485 adapters and 0-10V systems. Cords and controller sold separately.
Faven Chroma Under Canopy Starter Pack 4x4
Faven Chroma Under Canopy Starter Pack 4x4 is an under-canopy lighting kit for a 4x4 ft bench with two 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, couplings, power cord, jumper cable, stands. Choice of cord voltage.
Faven Chroma Under Canopy Starter Pack 4x8
Faven Chroma Under Canopy Starter Pack 4x8 is an under-canopy lighting kit for a 4x8 ft bench with four 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, power cord, jumper cable, stands. Choice of cord voltage.
Faven Chroma Under Canopy Starter Pro Pack XL
Faven Chroma Under Canopy Starter Pro Pack XL is an under-canopy lighting kit with sixteen 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, power cord, jumper cable, stands. Choice of cord voltage.
More from FAVEN Lighting
Other products by FAVEN Lighting.
Faven CX3 Under Canopy Lighting Controller
Faven CX3 Under Canopy Lighting Controller is a standalone controller for Faven Chroma, R6 and R8 fixtures. Two independent channels offer dimming, spectrum adjustment and far-red scheduling, run manually or on a timer, for up to 100 fixtures per channel (200 total).
Faven Mini Controller
Faven Mini Controller is a compact 0-10V dimmer for Faven R6 and R8 under canopy lights, controlling up to 100 fixtures. It plugs into the RJ port on the power cord and sets intensity in levels 1-9 or full power. Dimming only: no on/off or timer function. Not for Chroma.
Faven R Series 120V Power Cord
Faven R Series 120V Power Cord is a 10 ft (3 m) power cable for connecting Faven R6 and R8 under canopy lights to a 120 V supply. It comes with an accessory dimming wire for use with a 0-10V controller. Sold as the bare cord, without end cap or communication cable.
Faven R Series Power Cord Bundle
Faven R Series Power Cord Bundle supplies power to Faven R6 and R8 under canopy lights through a 10 ft (3 m) cord with built-in surge protection and a low-voltage dimming wire. Includes an IP66 end cap and a 10 ft single-end communication cable. 277 V version uses a NEMA L7 plug.
