Faven Chroma Under Canopy Light
Updated 18 Oct 2026
Faven Chroma Under Canopy Light is a 120 W LED bar with an adjustable R4-R9 spectrum and a separate 15 W far-red channel. IP66 sealed, internal driver. Works with Faven CX3, GrowFlux, approved RS485 adapters and 0-10V systems. Cords and controller sold separately.
Usage & Instructions

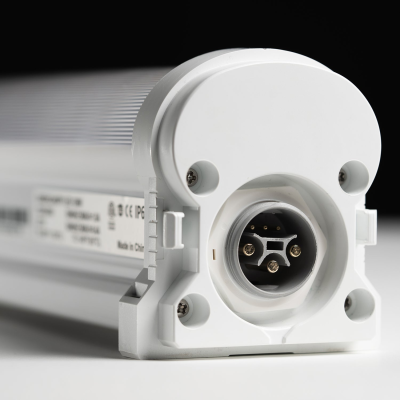

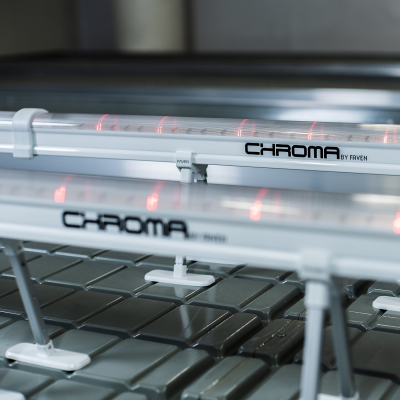

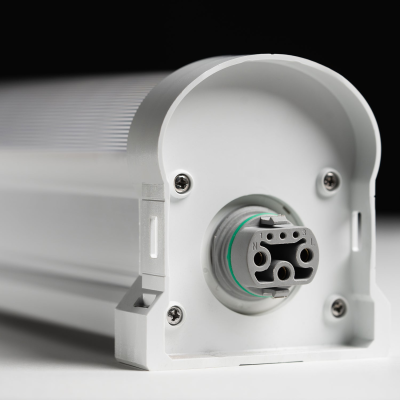

Mount on Faven adjustable stands at 8, 10 or 12 in below the canopy, lengthwise or crosswise to the bench. Daisy-chain fixtures with couplings and jumper cables; max fixtures per run: 9 at 120 V, 17 at 240 V, 20 at 277 V. Seal the last fixture with an end cap to keep IP66.
Product Specifications
Description

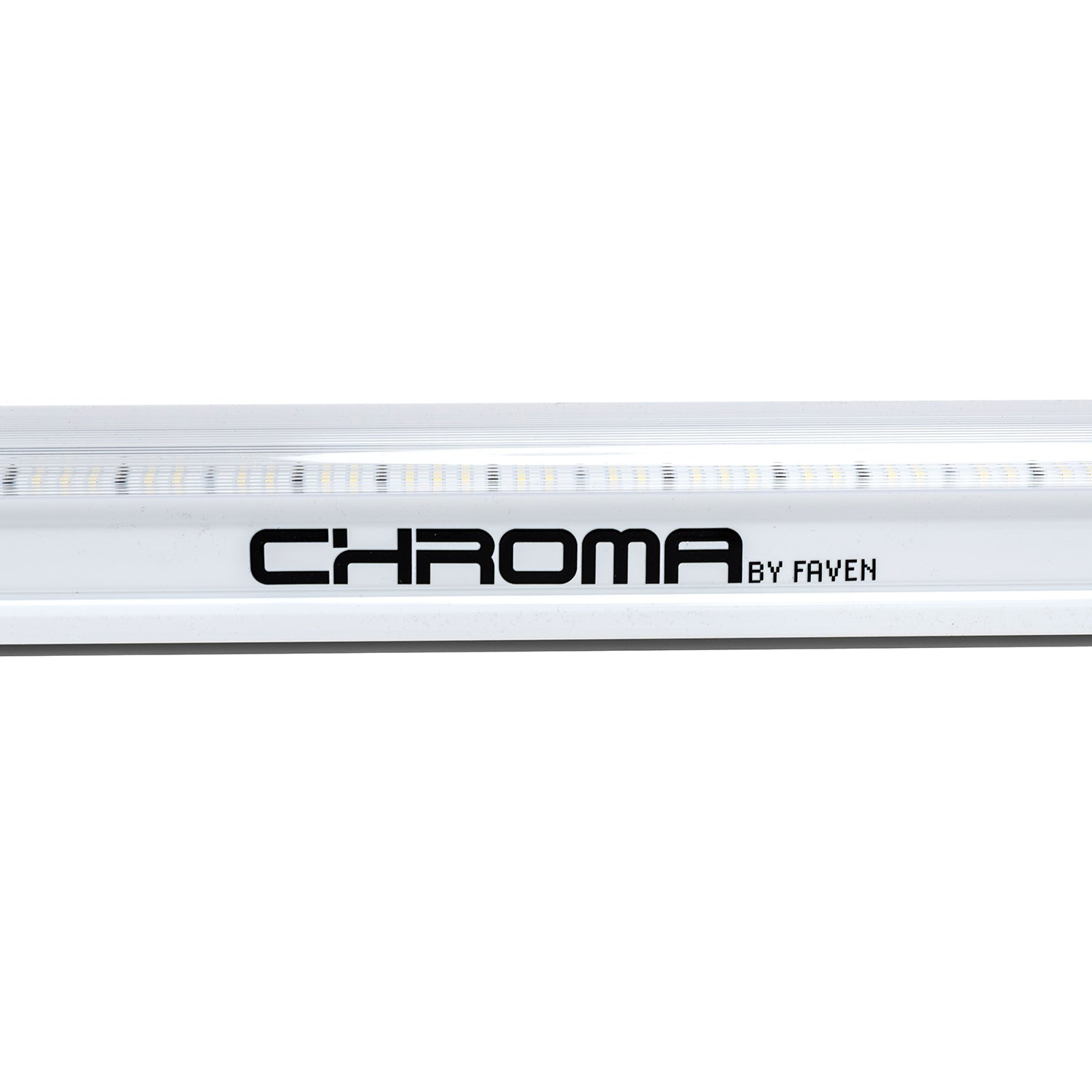

Chroma is Faven's spectrum-adjustable under-canopy bar: red and white channels tune between spectrum settings R4 and R9, and an independent 15 W far-red channel can be scheduled separately. Per the Chroma datasheet: 120 W + 15 W far-red input, up to 3.31 µmol/J, up to 399 µmol/s PPF (main) plus 40 µmol/s far-red; input 120/240/277 V, 50/60 Hz (1.0 / 0.5 / 0.43 A); passive cooling, internal driver; 120° distribution; dimming 40-100 % plus off; rated life >50,000 h. Fixture 115.7 x 7.5 x 8.5 cm (45.6 x 2.9 x 3.3 in), 2.6 kg. 5-year warranty. Control: Faven CX3 (or legacy CX2), GrowFlux wireless (up to 99 fixtures per dimmer), approved RS485 adapters, 0-10V.
Chroma
All products in the Chroma range.
Faven Chroma Power Cord Bundle
Faven Chroma Power Cord Bundle supplies power to Faven Chroma under canopy lights through a 10 ft (3 m) cord with built-in surge protection and a low-voltage dimming wire. Includes an IP66 end cap and a 10 ft single-end communication cable. 277 V version uses a NEMA L7 plug.
Faven Chroma Under Canopy Starter Pack 4x4
Faven Chroma Under Canopy Starter Pack 4x4 is an under-canopy lighting kit for a 4x4 ft bench with two 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, couplings, power cord, jumper cable, stands. Choice of cord voltage.
Faven Chroma Under Canopy Starter Pack 4x8
Faven Chroma Under Canopy Starter Pack 4x8 is an under-canopy lighting kit for a 4x8 ft bench with four 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, power cord, jumper cable, stands. Choice of cord voltage.
Faven Chroma Under Canopy Starter Pro Pack
Faven Chroma Under Canopy Starter Pro Pack is an under-canopy lighting kit with eight 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, power cord, jumper cable, stands. Choice of cord voltage.
Faven Chroma Under Canopy Starter Pro Pack XL
Faven Chroma Under Canopy Starter Pro Pack XL is an under-canopy lighting kit with sixteen 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, power cord, jumper cable, stands. Choice of cord voltage.
