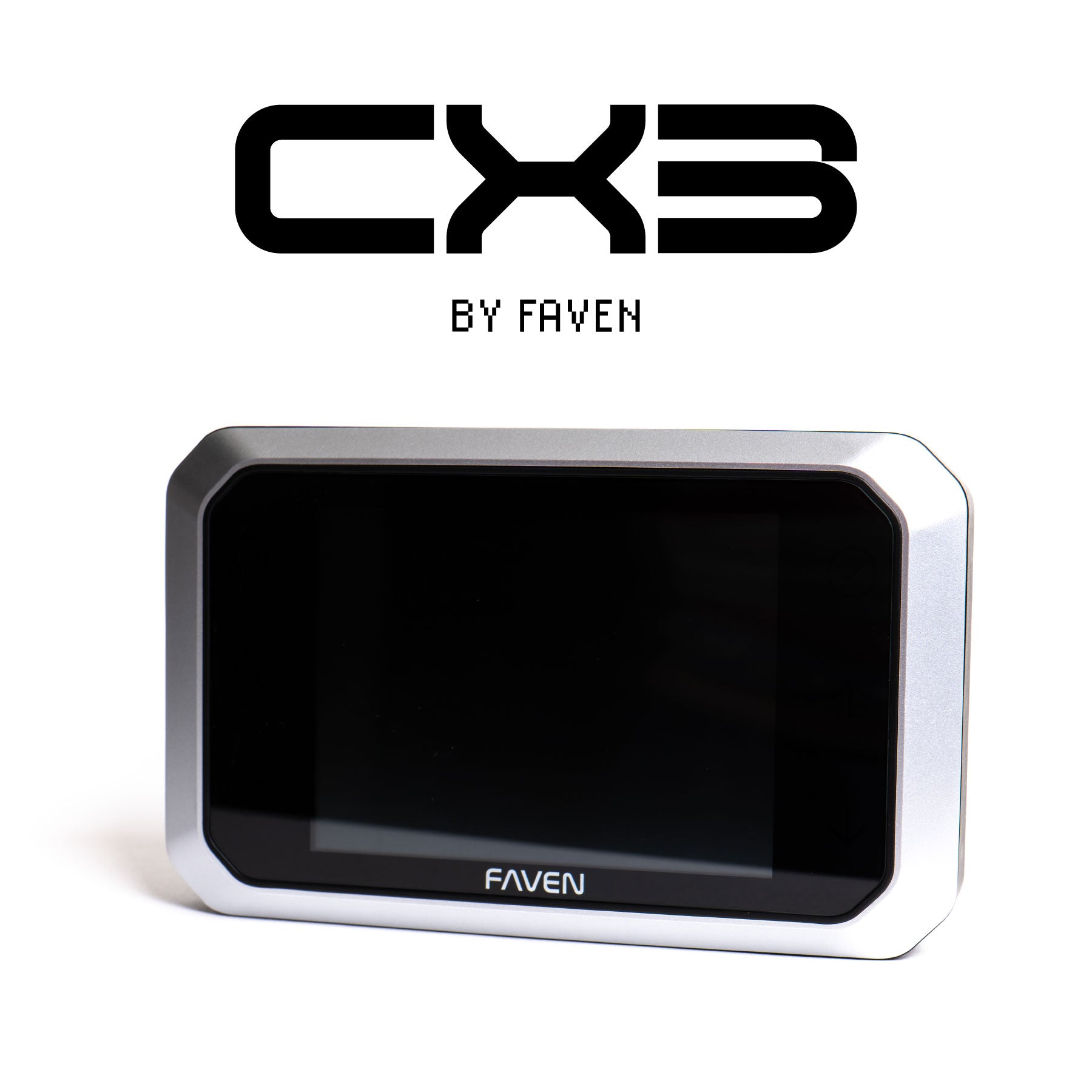

Faven CX3 Under Canopy Lighting Controller
Updated 18 Oct 2026
Faven CX3 Under Canopy Lighting Controller is a standalone controller for Faven Chroma, R6 and R8 fixtures. Two independent channels offer dimming, spectrum adjustment and far-red scheduling, run manually or on a timer, for up to 100 fixtures per channel (200 total).
Usage & Instructions
Connect to the communication port of the Faven power cord on each fixture run. Assign runs to channel 1 or 2, then set intensity, spectrum and far-red schedules manually or by timer.
Description

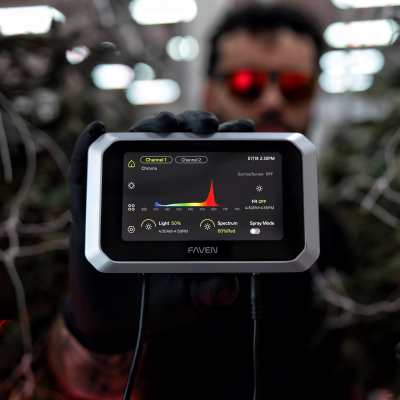

The CX3 replaces third-party lighting control for Faven fixtures. Each of its two channels can dim, adjust Chroma spectrum and schedule far-red independently, in manual or time-based mode. Capacity: 100 fixtures per channel, 200 in total. Compatible with Faven R6, R8 and Chroma only. A video user guide is published by Faven.
Controllers
All products in the Controllers range.
Faven Mini Controller
Faven Mini Controller is a compact 0-10V dimmer for Faven R6 and R8 under canopy lights, controlling up to 100 fixtures. It plugs into the RJ port on the power cord and sets intensity in levels 1-9 or full power. Dimming only: no on/off or timer function. Not for Chroma.
More from FAVEN Lighting
Other products by FAVEN Lighting.
Faven Chroma Power Cord Bundle
Faven Chroma Power Cord Bundle supplies power to Faven Chroma under canopy lights through a 10 ft (3 m) cord with built-in surge protection and a low-voltage dimming wire. Includes an IP66 end cap and a 10 ft single-end communication cable. 277 V version uses a NEMA L7 plug.
Faven Chroma Under Canopy Light
Faven Chroma Under Canopy Light is a 120 W LED bar with an adjustable R4-R9 spectrum and a separate 15 W far-red channel. IP66 sealed, internal driver. Works with Faven CX3, GrowFlux, approved RS485 adapters and 0-10V systems. Cords and controller sold separately.
Faven Chroma Under Canopy Starter Pack 4x4
Faven Chroma Under Canopy Starter Pack 4x4 is an under-canopy lighting kit for a 4x4 ft bench with two 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, couplings, power cord, jumper cable, stands. Choice of cord voltage.
Faven Chroma Under Canopy Starter Pack 4x8
Faven Chroma Under Canopy Starter Pack 4x8 is an under-canopy lighting kit for a 4x8 ft bench with four 120 W Faven Chroma spectrum-adjustable lights with far-red channel, plus controller, power cord, jumper cable, stands. Choice of cord voltage.
