FAVEN Lighting

Faven R8 Under Canopy Light

Name: Faven R8 Under Canopy Light
Brand: FAVEN Lighting
SKU: 10-010501-060

Updated 18 Oct 2026

LED Grow Lights

CE ETL DLC Horticultural

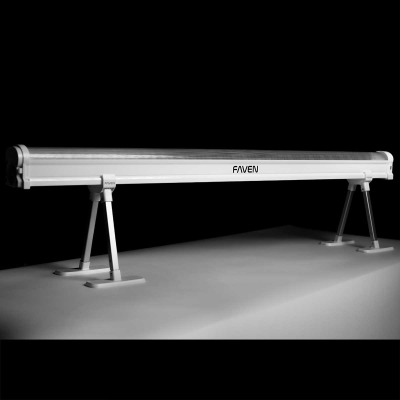

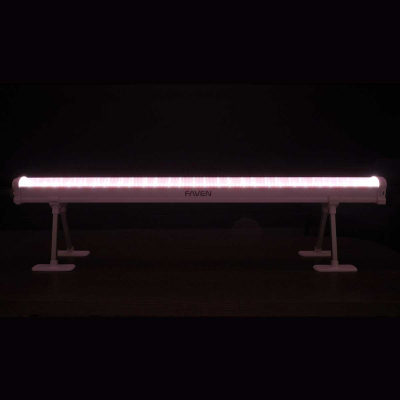

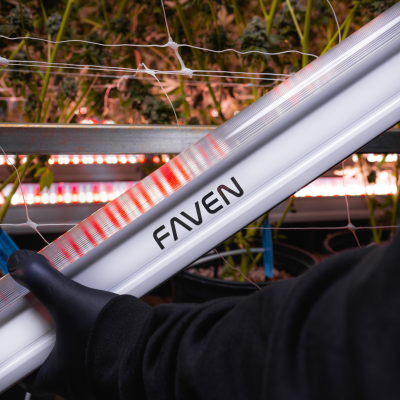

Faven R8 Under Canopy Light is a 120 W red-heavy LED bar for lighting the lower canopy, recommended by Faven for LED-lit rooms and greenhouses. Up to 3.28 µmol/J, IP66 sealed housing, internal driver, 0-10V dimmable. Cords and accessories sold separately.

Star Follow

Product Code B0076-G-002

GTIN/EAN 0198715043785

Product Group R Series

Status Active

Usage & Instructions

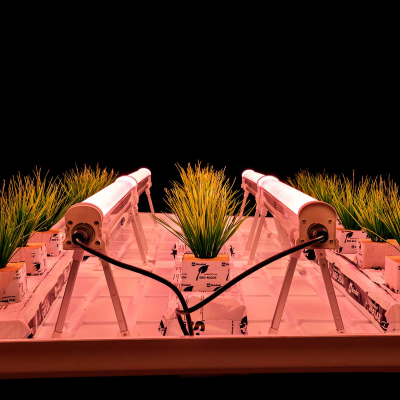

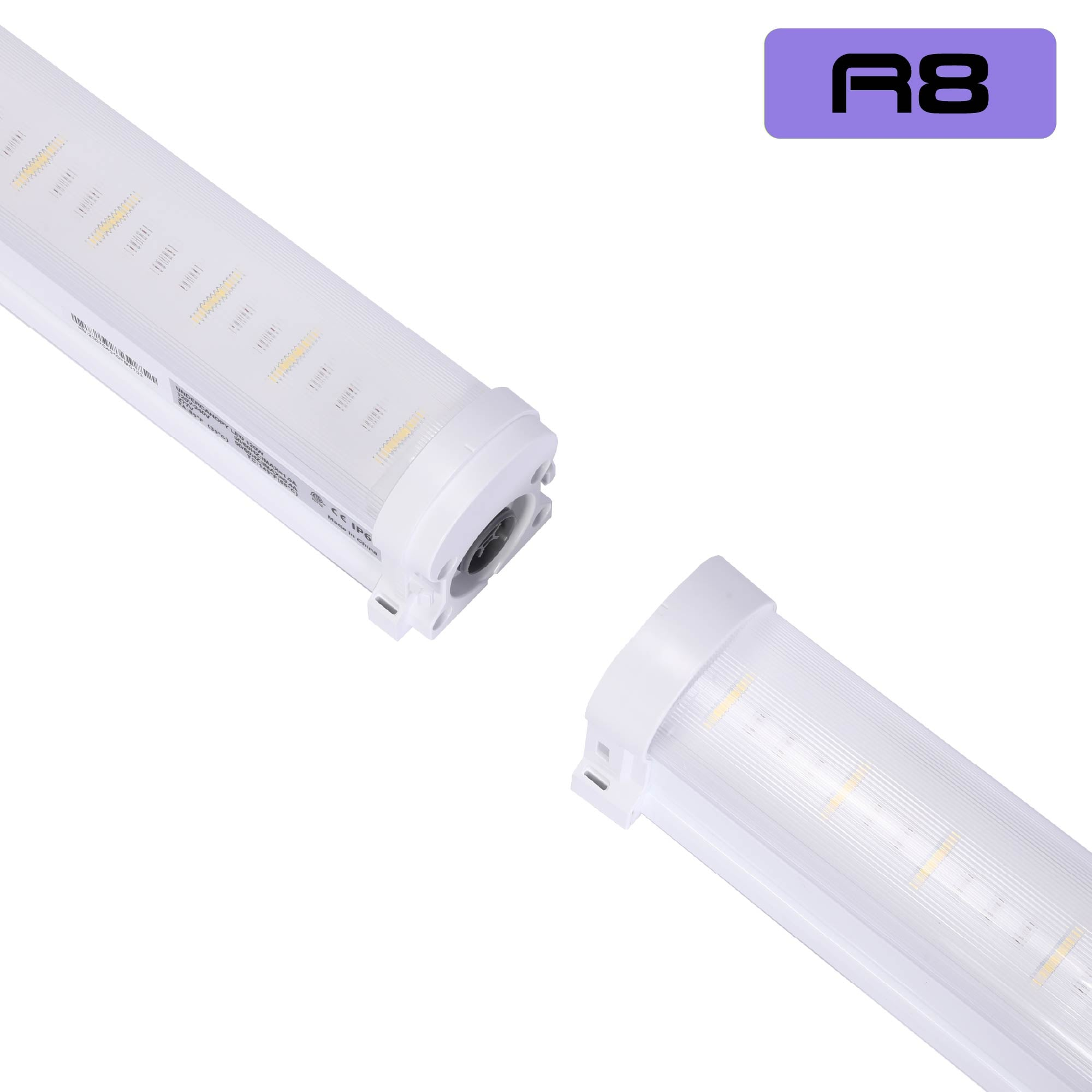

Mount on Faven adjustable stands at 8, 10 or 12 in below the canopy, lengthwise or crosswise to the bench. Daisy-chain fixtures with couplings and jumper cables; max fixtures per run: 9 at 120 V, 17 at 240 V, 20 at 277 V. Seal the last fixture with an end cap to keep IP66. 480 V version: up to 35 fixtures per run.

Product Specifications

Dimmable

Yes

Driver Location

Internal

Efficacy (μmol/J)

3.28 μmol/J

IP protection (mS/cm)

IP66

Power Consumption (W)

120 W

PPF (Total Output) (μmol/s)

399 μmol/s

Spectrum Type (mS/cm)

Custom

Description

The R8 is Faven's red-dominant under-canopy (UCL) bar, intended to complement LED top lighting and greenhouse sun. Per the R Series datasheet: 120 W input, up to 3.28 µmol/J and up to 399 µmol/s PPF; input 120/240/277 V, 50/60 Hz (1.0 / 0.5 / 0.43 A), 480 V version on request; passive cooling with internal driver; 120° light distribution; dimming 40-100 % plus off; rated life >50,000 h. Fixture 115.7 x 7.5 x 8.5 cm (45.6 x 2.9 x 3.3 in), 2.6 kg. 5-year warranty.
